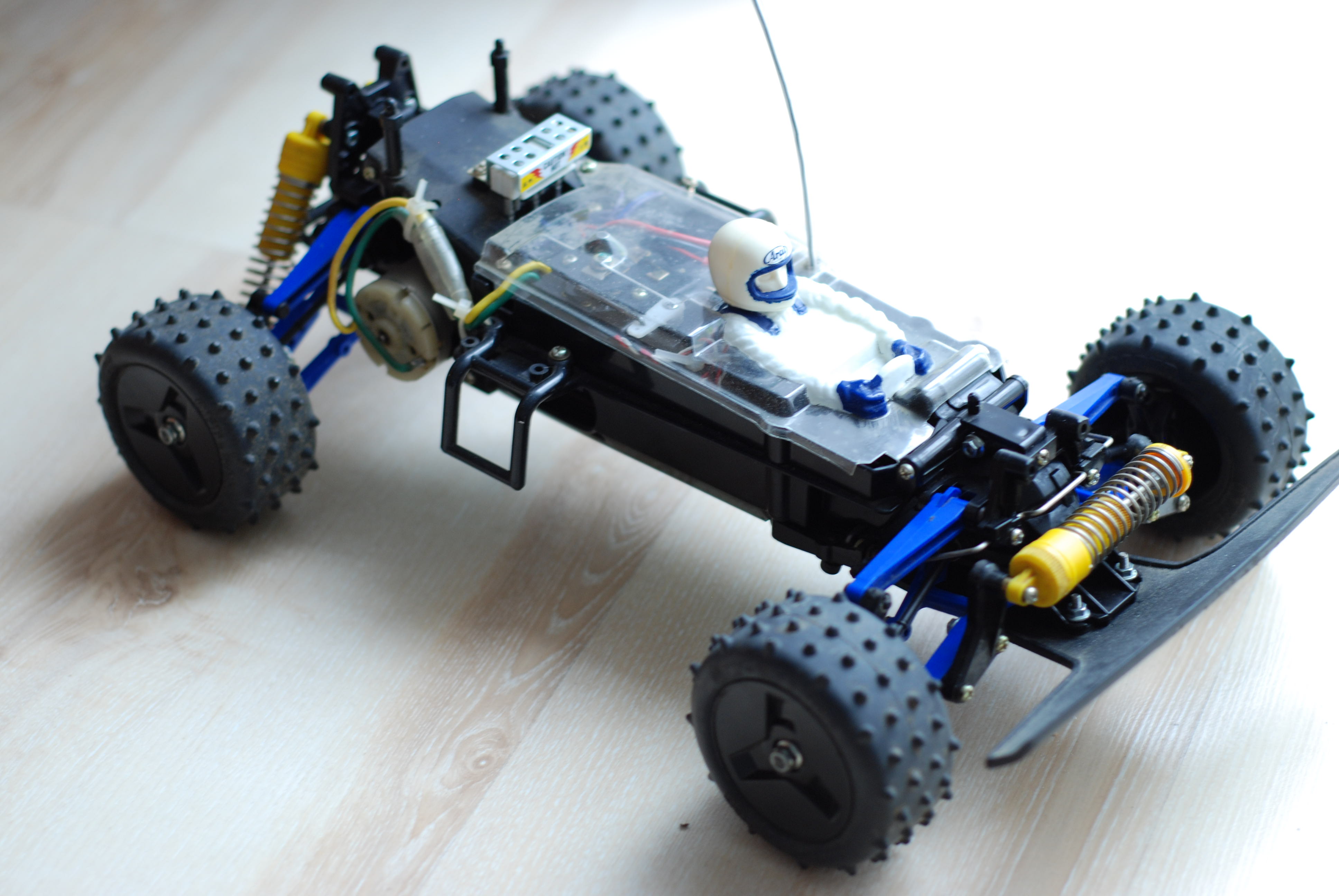

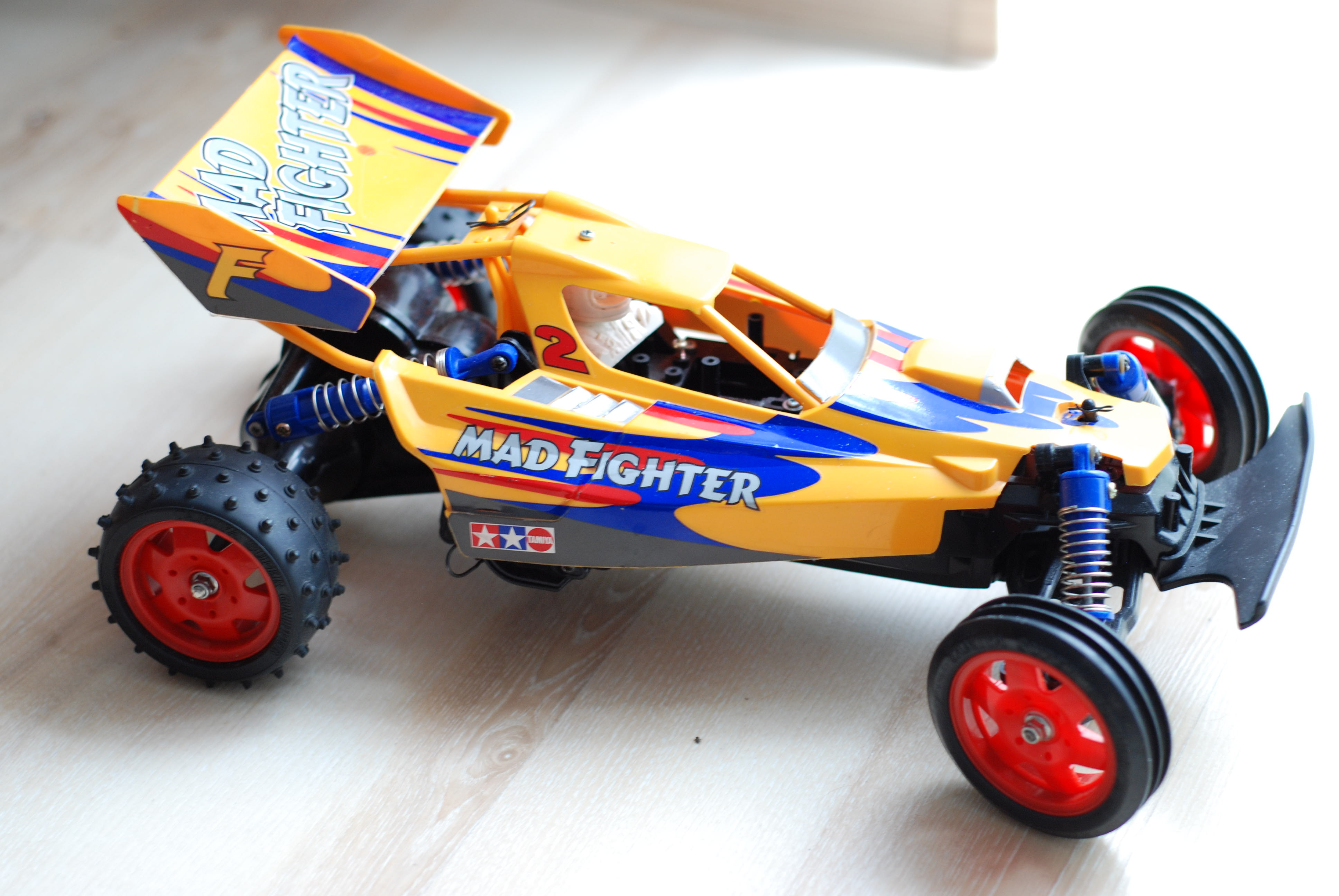

RC
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | off-road |
| Drive-train | 2WD RWD |
| Drive type | gearbox |
| Drive line | solid axle |
| Differential type | gear |
| Suspension | independent front/solid axle rear |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | pin spike |
| Body material | ABS Plastic |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | not included |
| ESC model | n/a |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | metal and plastic bushings |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | DT-01 Chassis |
| Special feature 2 | Overall length: 390mm |
| Special feature 3 | Overall width: 236mm |
| Special feature 4 | Overall height: 160mm |
| Special feature 5 | Chassis weight: approx.(includes battery)1,485g |
| Special feature 6 | Wheelbase: 284mm Tread F/R: 205mm/196mm |
| Special feature 7 | Gear ratio: 9.33:1 |
| Special feature 8 | Tire width F/R: 23mm/40mm |
| Special feature 9 | Tire diameter F/R: 81mm/78mm |
| Special feature 10 | Tread pattern F/R: triple rib tire/stud spike tire. |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear |
| Requires C | TS plastic model paint |
| Requires D | electronic speed control |
[vc_gallery interval=”3″ images=”821,823″ img_size=”full”]
[vc_separator]

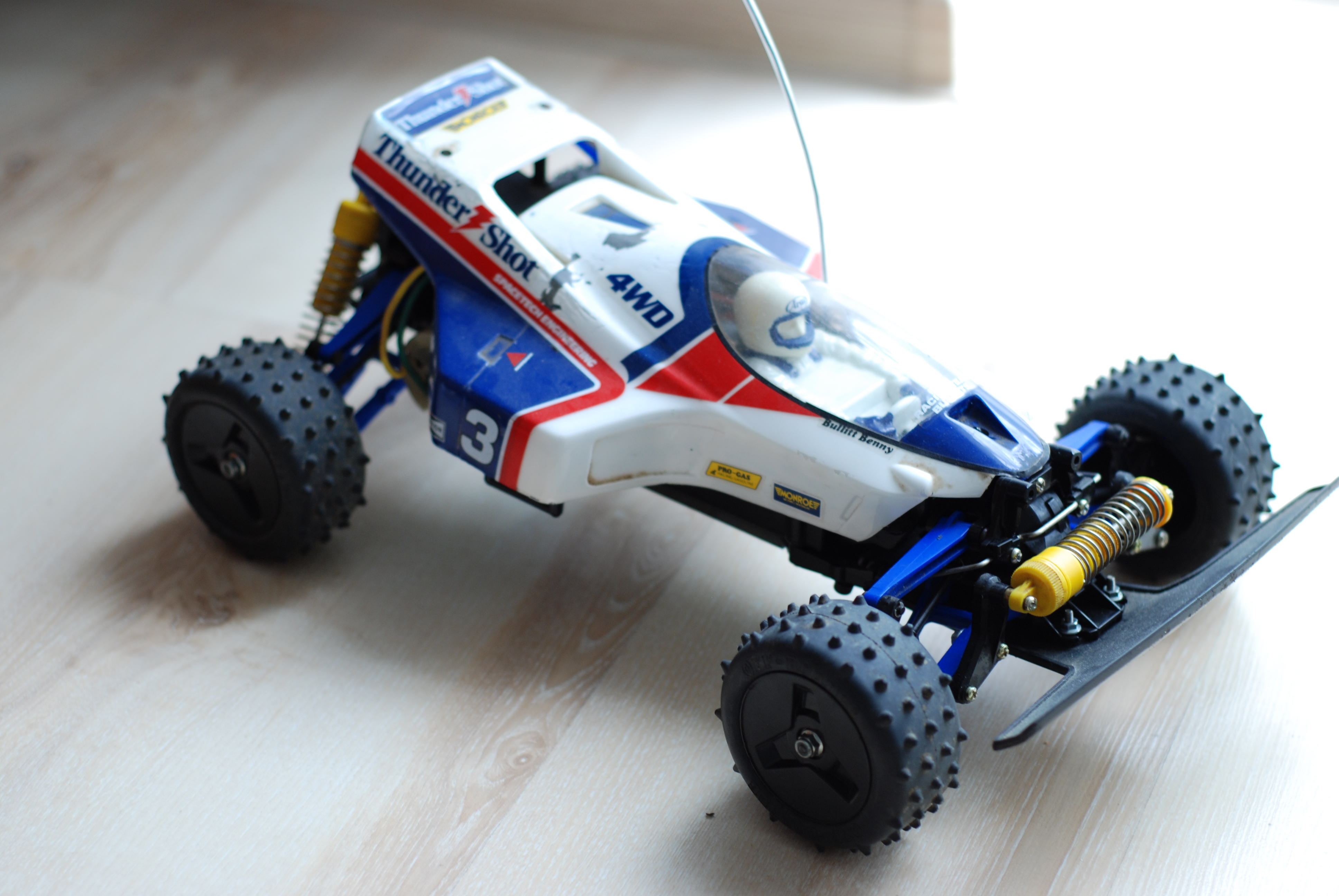

TAMIYA 1987 Thundershot
| 【 Entry-Level Futuristic Buggy 】 Originally released in 1987, the Thunder Shot gained widespread popularity with its futuristic body styling, and Tamiya is now proud to announce the re-release of this classic off-road buggy. Its spaceship-like body is made from tough lightweight polycarbonate and even features a cockpit housing a driver figure for increased realism. The slick-looking black wheels are equipped with spike tires that provide excellent grip and the large rear wing helps add downforce for stable 4WD off-roading. |
| 【 Easy to Assemble Shaft-Driven 4WD Chassis 】 Durable off-road chassis features mid-mounted motor for optimum balance and a bathtub frame to make installing the R/C mechanisms a breeze. 4-wheel double wishbone suspension features upper I Arms and lower H Arms for a simple but effectuve setup. Front suspension features a unique mono-shock with stabilizer while the rear suspension has two high-performance CVA oil dampers. Gearboxes are fully enclosed to keep out dirt and debris and feature internal diff. gear units for enhanced transmission efficiency. |
| 【 Specifications 】 ●Length: 390mm ●Width: 240mm ●Height: 132mm ●Drivetrain: Shaft-driven 4WD ●Suspension: 4-wheel Double Wishbone ●Tire Width/Diameter: (Front&Rear) 38/73mm ●Type 540 motor included. |
[vc_gallery interval=”3″ images=”839,840,841,842,843″ img_size=”full”]
[vc_separator]
58058 – Tamiya Blackfoot Ford F150 Ranger
Originally released back in October 1986, the Tamiya Blackfoot 58085 1/10th scale truck was one of Tamiya’s first budget Monster Trucks. Based on the same ORV Space frame chassis as the Monster Beetle, Frog and Subaru Brat, the Blackfoot offered good off and on-road performance for both the beginner and intermediate RC enthusiast.
Front end double wishbone suspension and a rear trailing arm suspension set up with long throw coil over friction shocks allows the truck to perform well on rough terrain, although a recommended and worthwhile upgrade here is to fit oil filled shocks for smoother, more predictable performance of the Tamiya Blackfoot 58085.
The body shell on the Blackfoot captures the classic lines of the full size Ford F150 American Pick Up very well. Made from durable black styrene plastic, it reduced the amount of painting required to get the truck on the road greatly.
Good condition, original models are now becoming quite sort after and will regularly fetch prices in excess of £100 for just the model alone.
Tamiya Blackfoot Specification
- Model Number: 58058
- Model Name: Blackfoot
- Original Release Date: 8-Oct-86
- Drive-train: 2WD rear, gear differential
- Suspension Setup: Front double wishbones, rear trailing arms, friction shocks
- Chassis Type: ORV, spaceframe plastic
- Body: Styrene Plastic Ford F150 Ranger
- Motor: Mabuchi RS540
- Cars using the same chassis:
- 58038: Subaru Brat
- 58040: Lancia Rally
- 58041: Frog
- 58058: Blackfoot
- 58060: Monster Beetle
- 58077: Mud Blaster
- 58101: Bush Devil
- 58110: Super Blackfoot
- 58192: King Blackfoot
- Width: 290mm
- Length: 440mm
- Height: 270mm
- Wheel base: 246mm
- Tread front: 225mm
- Tread rear: 225mm
- Ground clearance: 45mm
- Weight: 2220g
- Scale: 1/10
- Front tyre: 60/130mm
- Rear tyre: 60/130mm
[vc_gallery interval=”3″ images=”847,848,849″ img_size=”full”]
[vc_separator]
Tamiya Bush Devil 58101
Originally released way back in March 1992, the Tamiya Bush Devil joined the fold as one of Tamiya’s Iconic RC Monster Trucks. Based on the same proven space frame chassis as the Blackfoot and Monster Beetle variants, the 2 wheel drive Bush Devil was an instant hit with RC fans around the world, but it featured a newer Lexan/Polycarbonate body shell with styrene additions such as the roll bar & bull bars, rather than the rigid plastic shells of the aforementioned Monster Beetle and Blackfoot.
Tamiya Bush Devil Features & Specification
- Model Number: 58101
- Model Name: Bush Devil
- Released: 28-Mar-92
- Drive Train: 2WD rear, gear differential
- Suspension Setup: Double wishbone all 4 corners, coilover friction shocks
- Chassis Desc.: ORV, Plastic spaceframe design
- Body: Lexan with styrene bull-bars and roll-bar
- Standard Motor: RS540
- Scale: 1/10th
[vc_gallery interval=”3″ images=”853,854,857,858,861″ img_size=”full”]
[vc_separator]

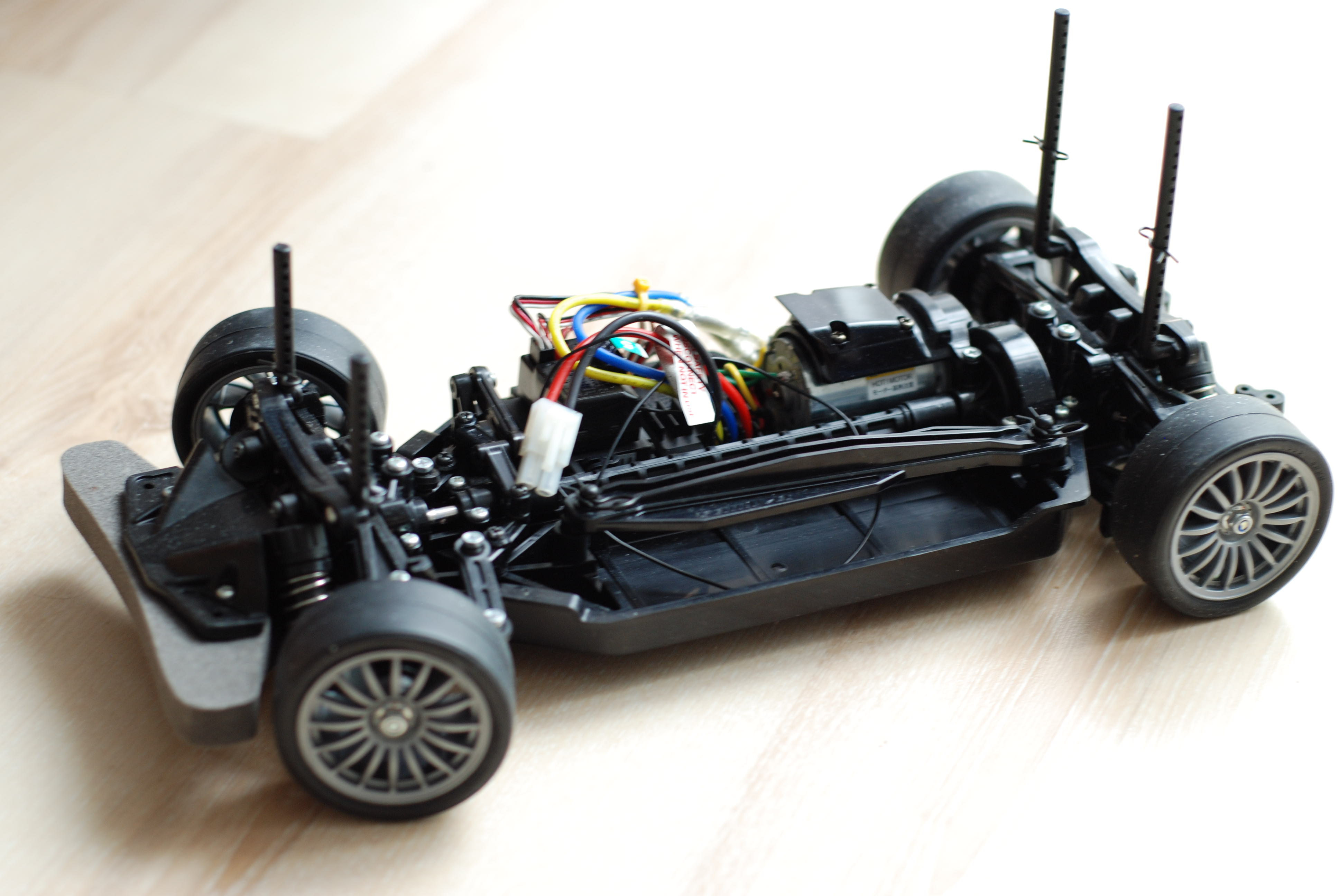

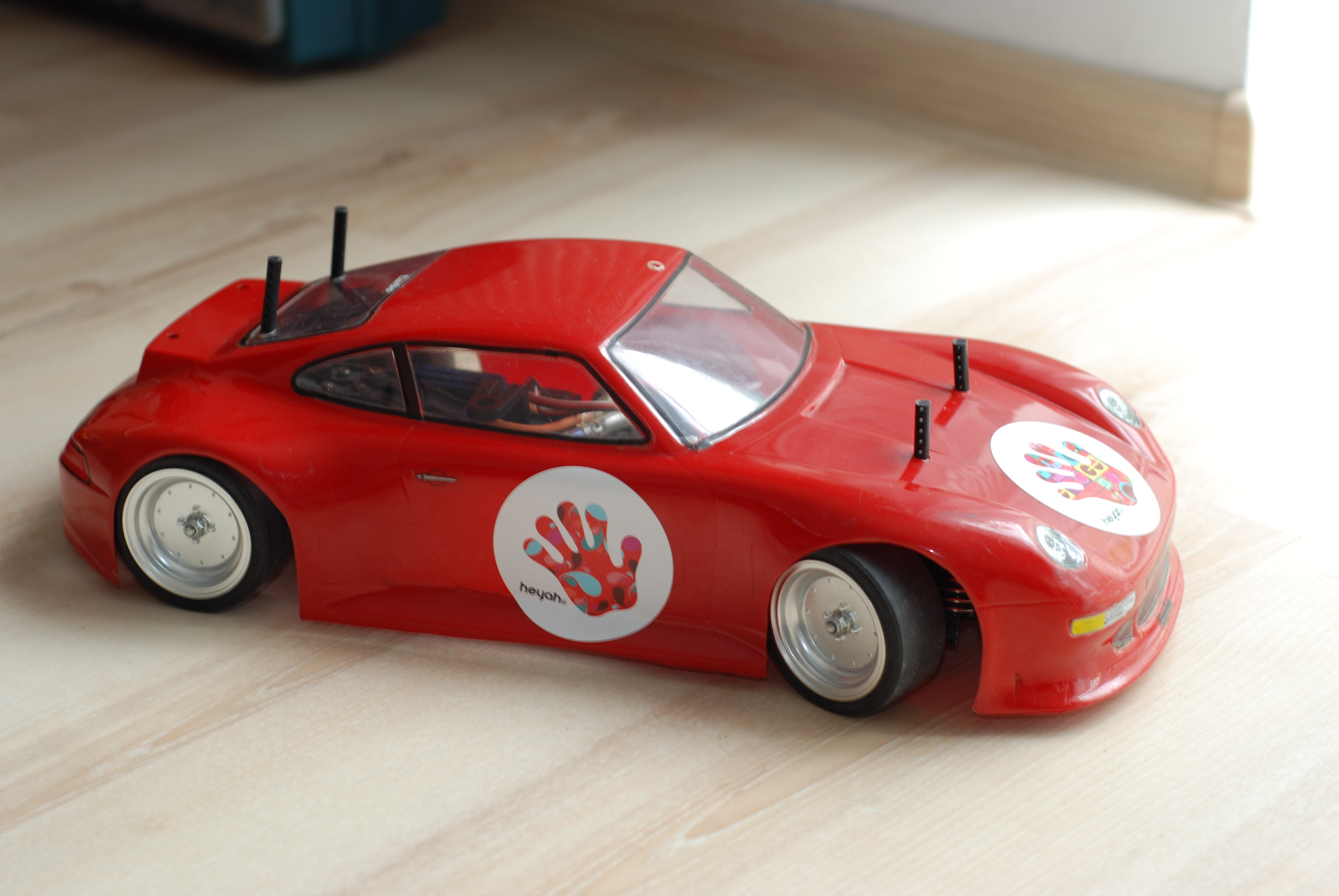

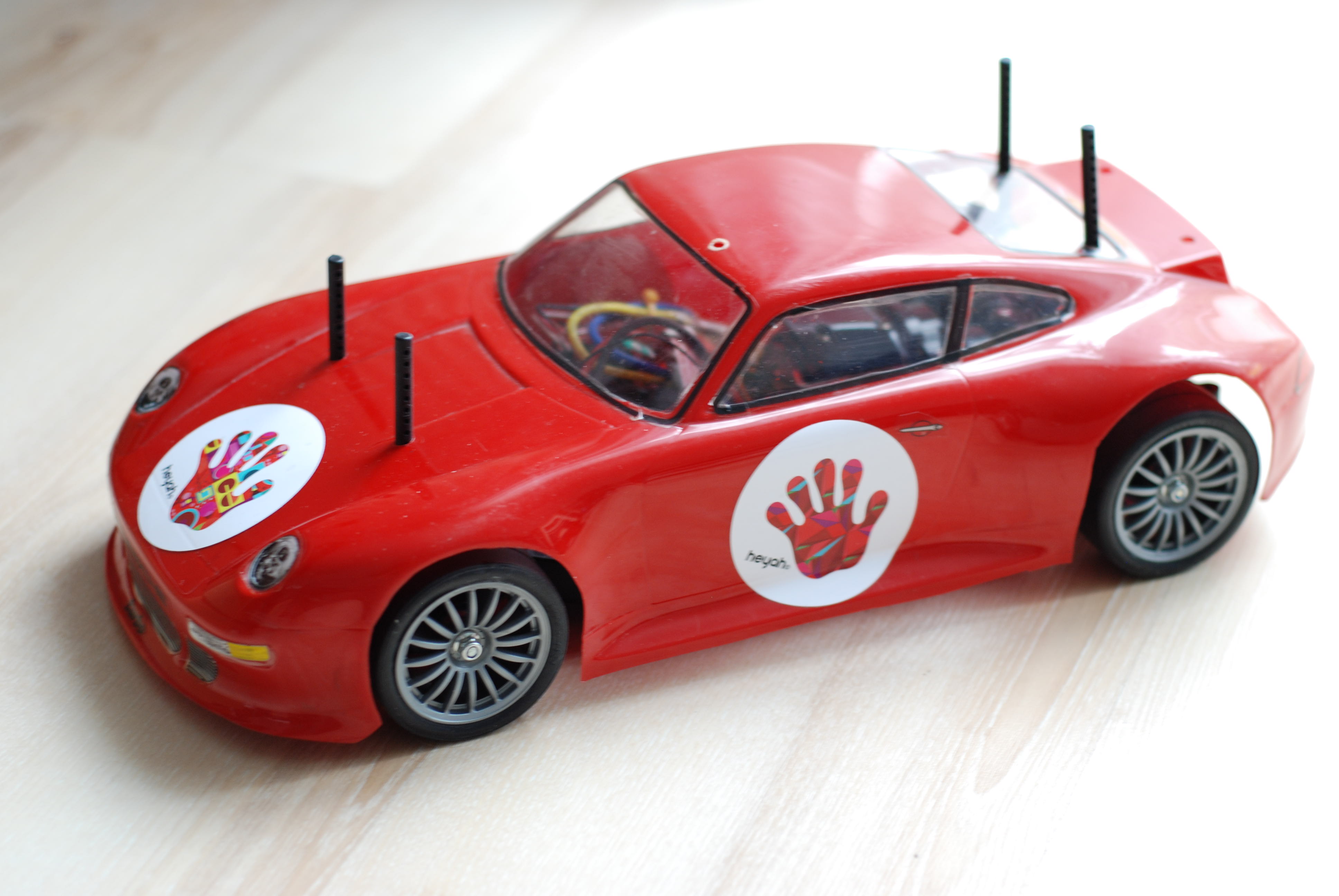

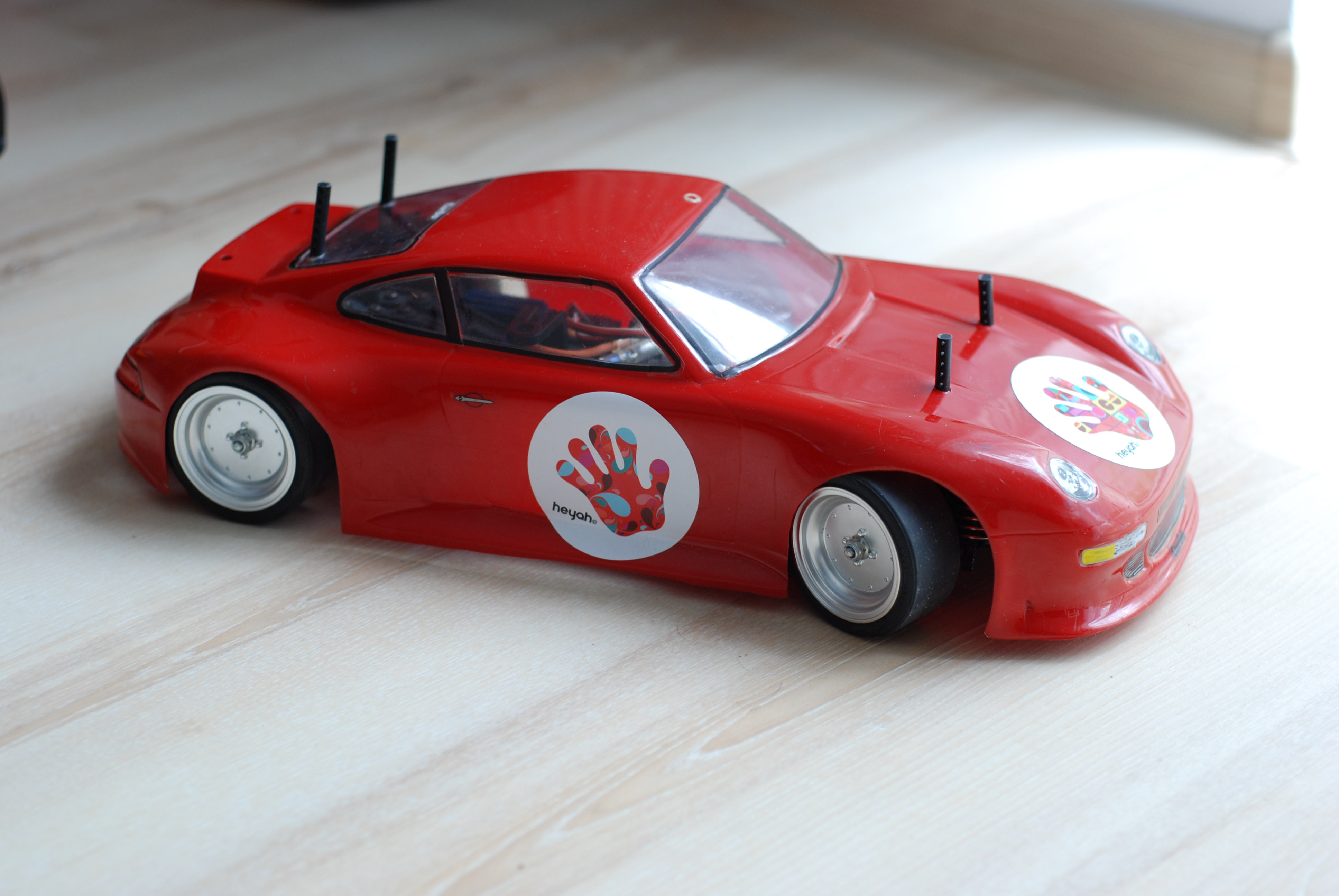

RC Porsche Boxster – M02L M-Chassis
Product Specifications
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | on-road |
| Drive-train | 2WD RWD |
| Drive type | gearbox |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | direct servo |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | radial |
| Body material | Clear Polycarbonate |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | included |
| ESC model | mechanical |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | metal and plastic bushings |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | Chassis Type: M-02L |
| Special feature 2 | Overall Length: 426mm |
| Special feature 3 | Overall Width: 177mm |
| Special feature 4 | Wheelbase: 239mm |
| Special feature 5 | Chassis Weight: 850g |
| Special feature 6 | Tread F/R: 138/146mm |
| Special feature 7 | Tire Width/Diameter F/R: 27/65mm |
| Special feature 8 | Gear Ratio: 6.86:1 |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear |
| Requires C | polycarbonate paint |
[vc_gallery interval=”3″ images=”862,863,864,865,866,867,868,869,870,871,872,873,874″ img_size=”full”]
[vc_separator]

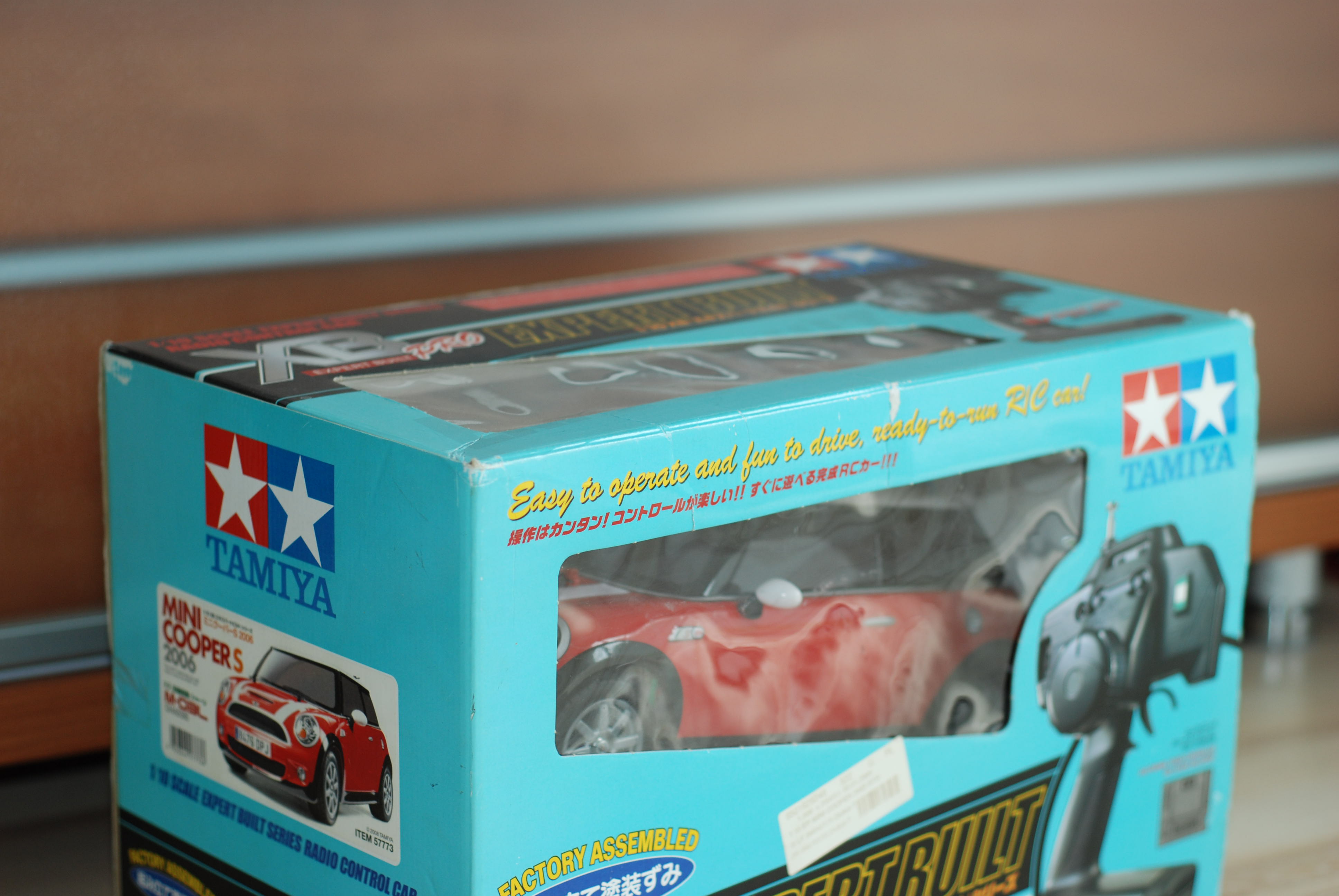

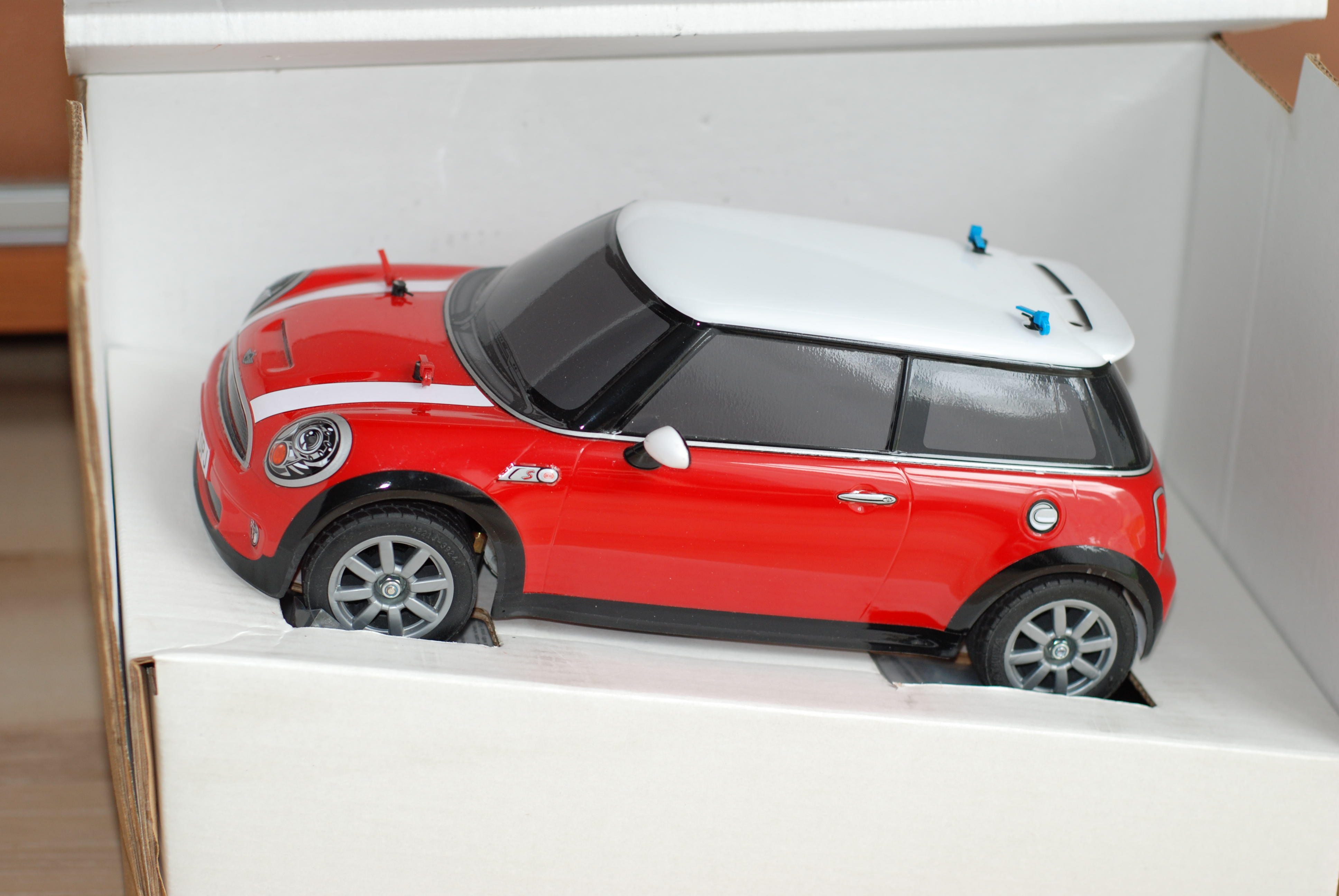

Tamiya Mini Cooper S 2006
1/10 R/C Car Series No.400
Item No:58400
（Length: 353mm Image shows assembled and painted model kit）
| 【 Get Behind the Wheel of This Hot Hatch 】 BMW’s MINI received a facelift for the 2007 model year, with cosmetic changes such as new body panels, repositioned turn signals, and new front grille. The Cooper S is the top-of-the-line model powered by a turbocharged 175hp 4-cylinder engine. Tamiya’s R/C assembly kit will let you experience the fun of driving this little hatchback. |
| 【 Front Wheel Drive M-03L Chassis 】 The M-03L chassis features front-mounted motor and front wheel drive just like the actual car for realistic handling. The easy to assemble, slim monocoque frame is made of durable resin, and features a 4-wheel independent double wishbone suspension with lightweight uprights for sharp steering cornering performance. New body shell parts are made from lightweight polycarbonate and reflect all the subtle changes on the MINI Cooper S 2006, including hood scoop and rear wing. Stylish MINI wheels are equipped with synthetic rubber radial tires for excellent on-road grip. |
| 【 Specifications 】 ●Length: 353mm ●Width: 169mm ●Height: 133mm ●Wheelbase: 237mm ●Tread: (Front/Rear) 138mm ●Tire Width/Diameter: (Front & Rear) 25/59mm ●Frame: Monocoque Type ●Drivetrain: Front wheel drive ●Diff. Gear: 3 Bevel ●Steering: Extra-long 2-piece tie rod ●Suspension: 4-wheel independent double wishbone ●Dampers: (Front/Rear) Friction dampers ●Gear Ratio: 5.8：1 ●Motor: Type 540 ●Speed Controller: ESC |
| 【 Separately Required Items 】 ●2-channel R/C system with ESC ●7.2V battery & charger |
[vc_gallery interval=”3″ images=”880,883,884,878,879,882,881″ img_size=”full”]
[vc_separator]

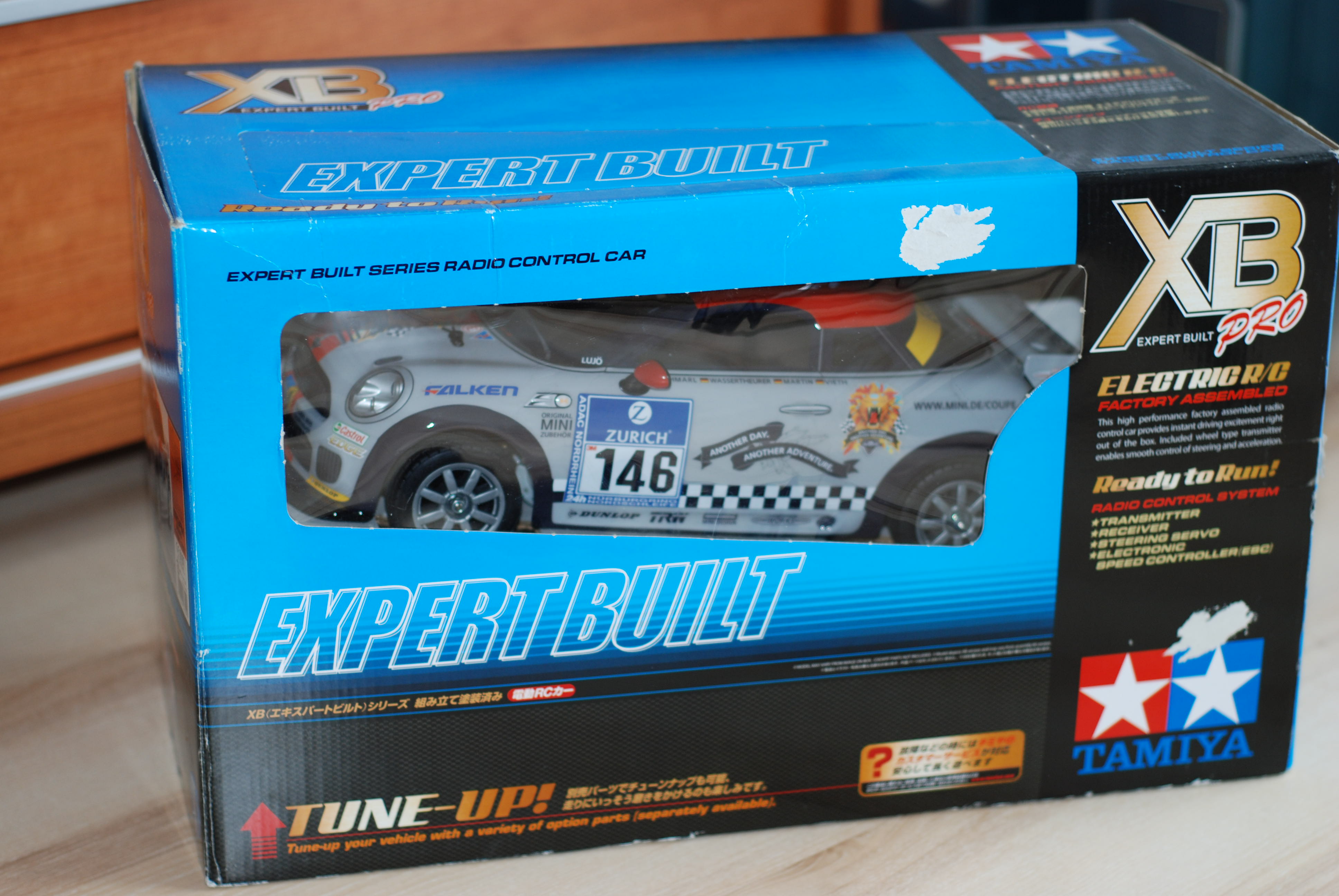

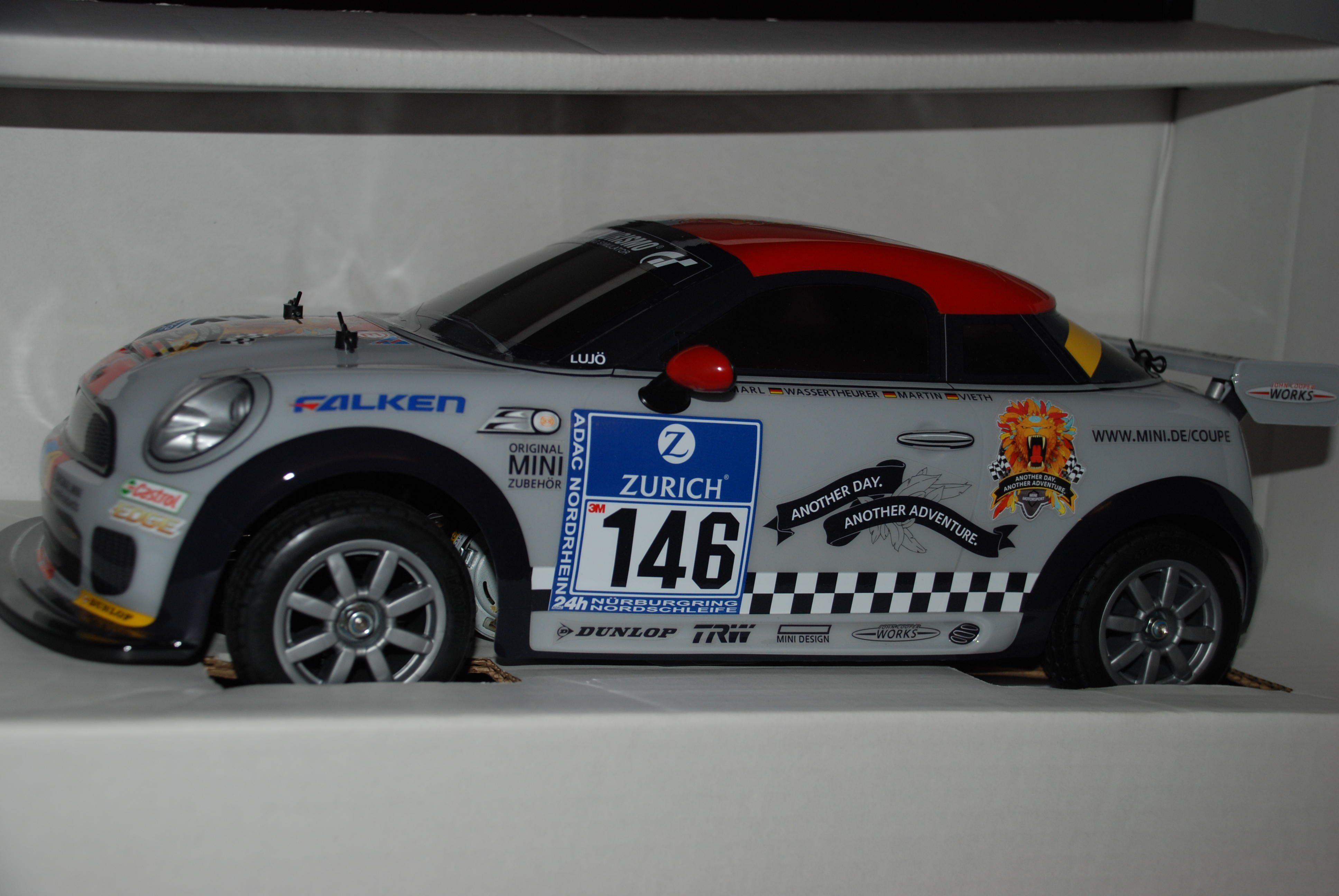

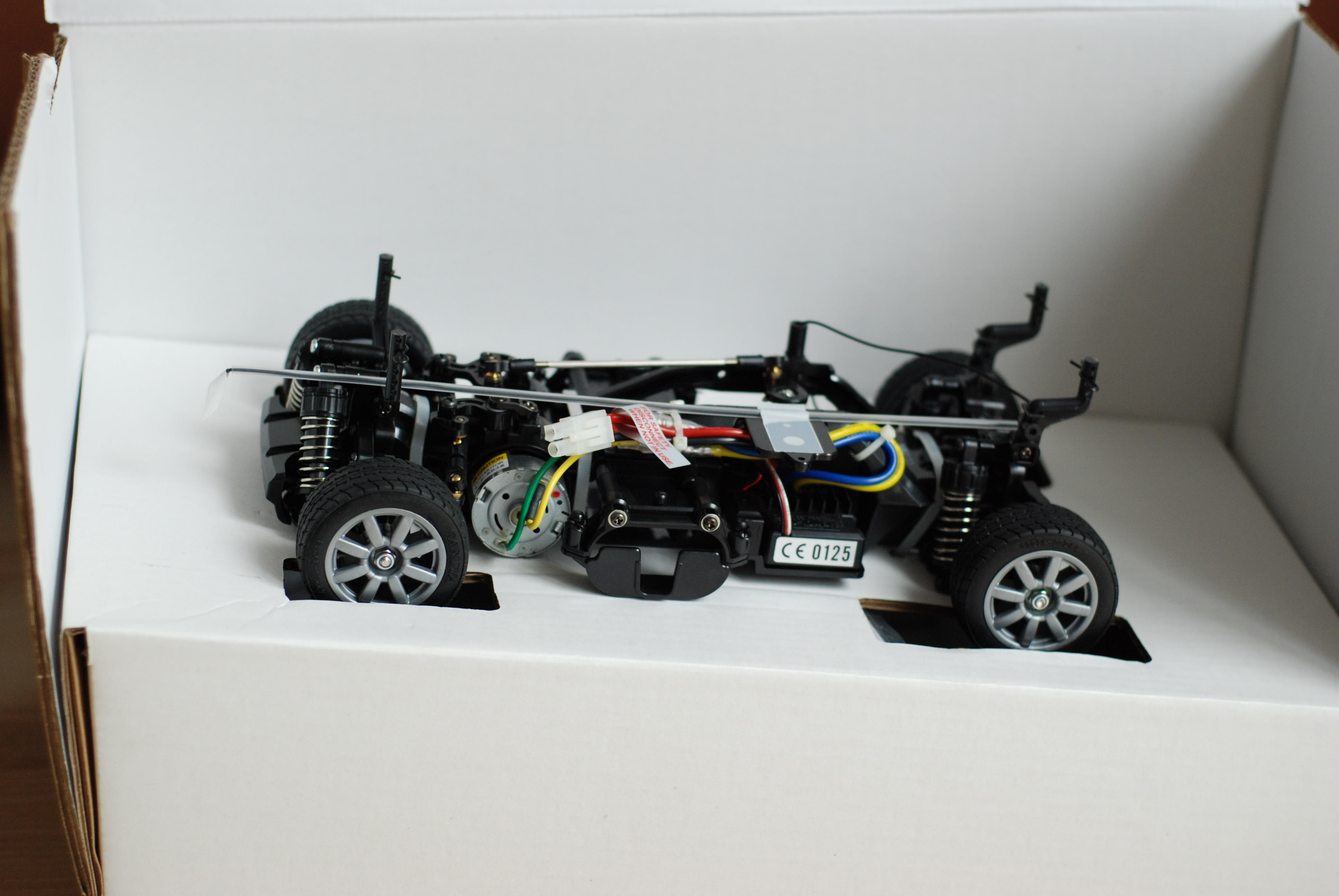

RC RTR Mini JCW Coupe – M05
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | RTR (Ready-to-Run) |
| Terrain use | on-road |
| Drive-train | 2WD FWD |
| Drive type | gearbox |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | radial |
| Body material | Polycarbonate |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | included |
| ESC model | TEU-105BK |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | plastic bushing |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | yes |
| Special feature 1 | Body is pre-painted and stickers are applied at the factory |
| Requires A | 7.2 battery & charger |
[vc_gallery interval=”3″ images=”887,888,889,890,891,892,893,894,895″ img_size=”full”]
[vc_separator]
Tamiya Rover Mini Cooper ’94 Monte Carlo
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | on-road |
| Drive-train | 2WD FWD |
| Drive type | gearbox |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | radial |
| Body material | Clear Polycarbonate |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | included |
| ESC model | mechanical |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | plastic bushing |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | Chassis Type: M-03 |
| Special feature 2 | Overall Length: 315mm |
| Special feature 3 | Overall Width: 167mm |
| Special feature 4 | Wheelbase: 210mm |
| Special feature 5 | Chassis Weight: 855g |
| Special feature 6 | Tread F/R: 138mm |
| Special feature 7 | Tire Width/Diameter F/R: 27/59mm |
| Special feature 8 | Gear Ratio: 5.8:1 |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear |
| Requires C | polycarbonate paint |
[vc_gallery interval=”3″ images=”898,897″ img_size=”full”]
[vc_separator]

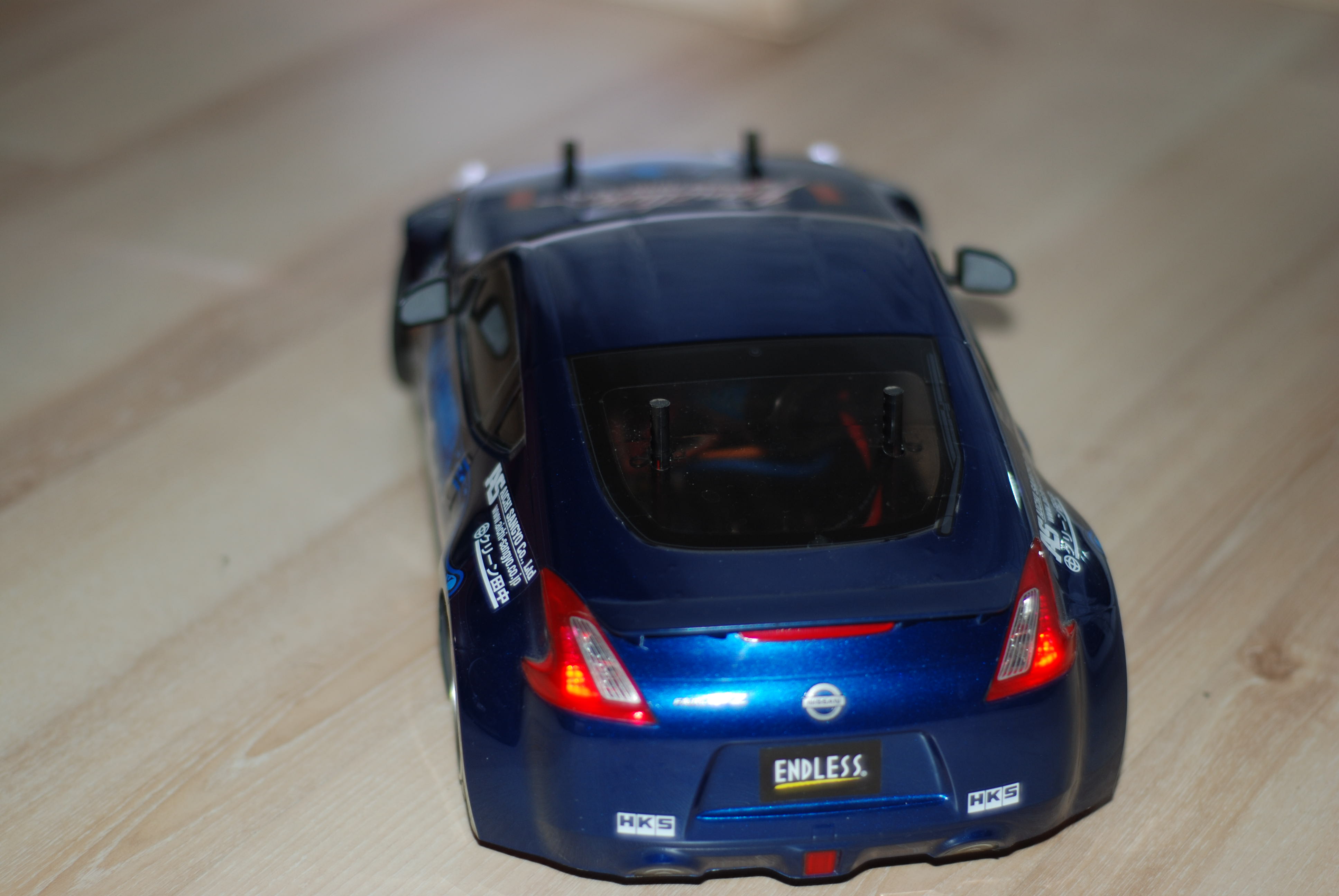

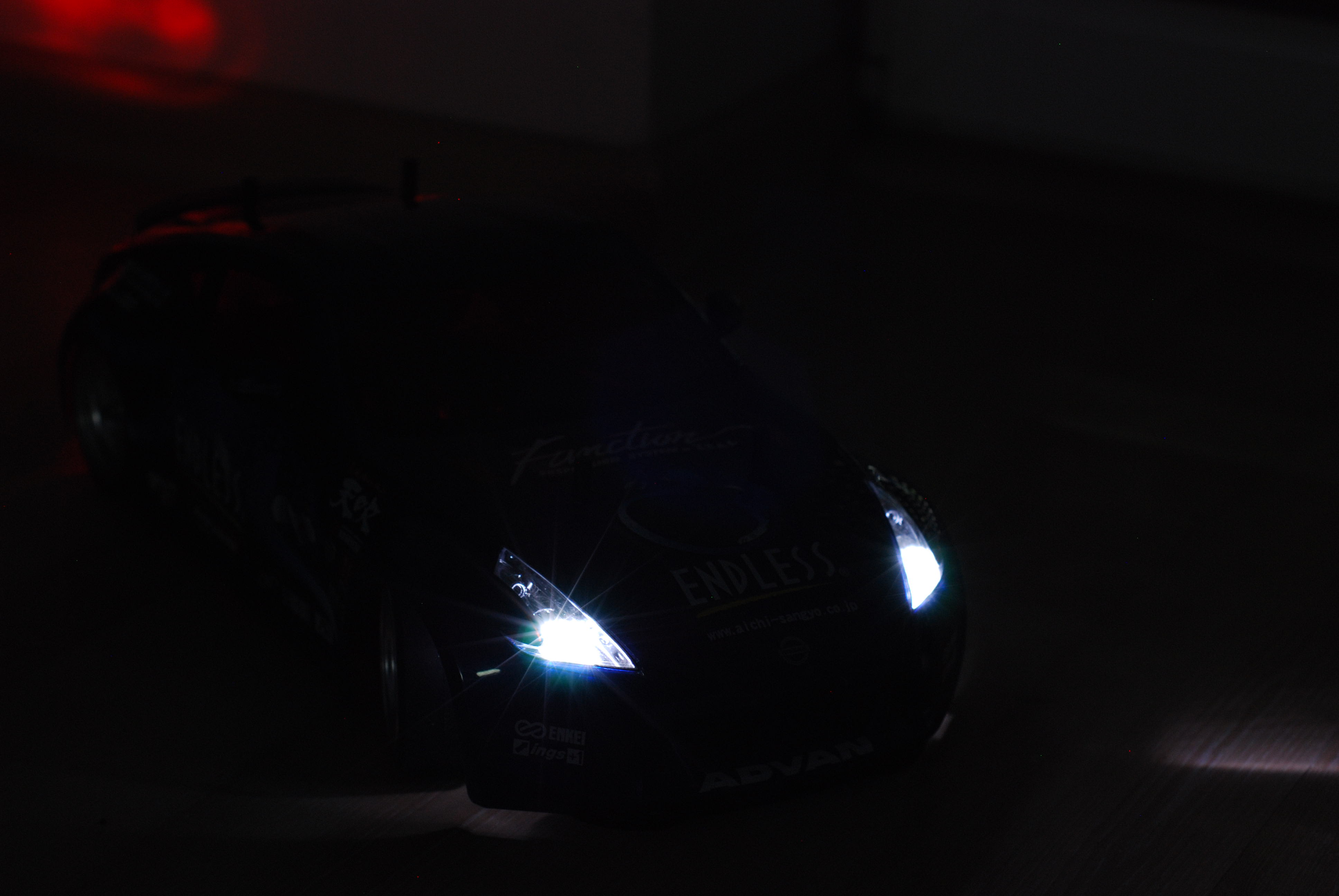

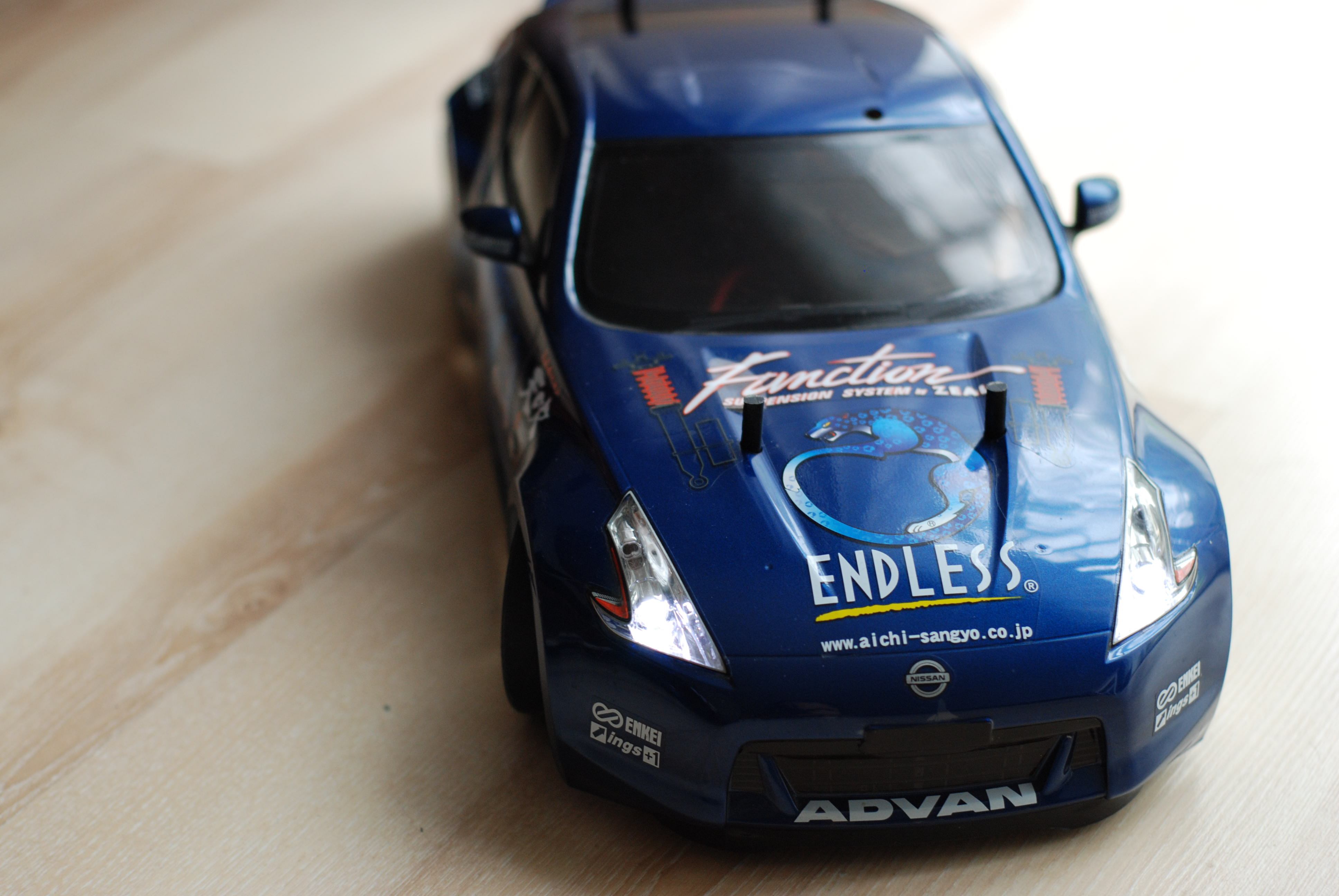

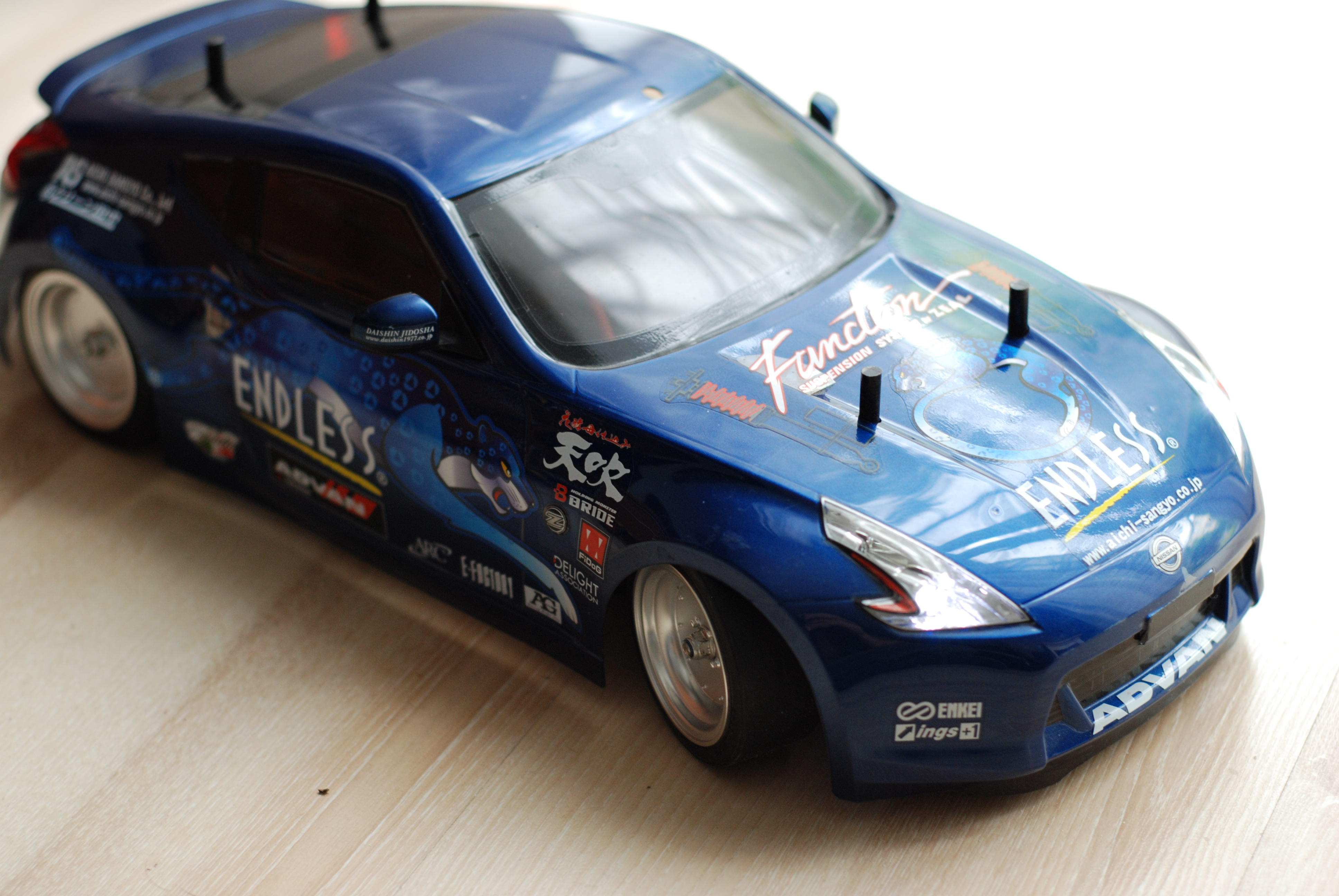

XB Endless 370Z (TT-01D Type-E) Drift Spec
1/10 Expert Built Series No.109
XB Endless 370Z (TT-01D Type-E) Drift Spec
Item No：57809
Length=425mm ※Enlarged Image
| 【 ENDLESS Drifting 】 Famous Japanese brake parts manufacturer ENDLESS chose the 370Z (Z34) as their official demonstration car and it now comes reproduced as a 1/10 scale ready-to-run drift-spec R/C model. The polycarbonate body accurately captures the athletic form of the 370Z which Nissan released in 2008. The distinctive boomerang shaped front and rear light cases have been faithfully rendered with metal-plated parts. In addition, LEDs to depict realistic head (white) and tail (red) lights are included. This machine comes mounted on the TT-01D Type-E chassis which features many special parts to enable thrilling drift driving. |
| 【 TT-01 Type-E with Drift Specifications 】 The TT-01D Type-E drift-spec chassis features excellent chassis rigidity thanks to its fiberglass reinforced nylon upper deck and gear covers. 24mm width drift tires mounted on metal-plated mesh wheels enable easy drift control and offer great durability. The 4-wheel double wishbone suspension is equipped with CVA Shock Unit Super Mini and adjustable upper arms, providing a wide range of setting possibilities. In addition, ball bearings reduce friction loss to efficiently transmit the power from the Sport-Tuned Motor. Furthermore, an aluminum motor heatsink is included to effectively dissipate motor heat. |
| 【 R/C Units, Battery Pack, and Charger 】 R/C units are installed onto the pre-assembled chassis and a wheel-trigger type transmitter, battery pack & charger are included to allow you to enjoy R/C driving instantly. The FM transmitter features detachable grip covers to match your hand size as well as a throttle trigger cover to increase the size of the throttle trigger for easier operation. (*Battery pack and charger are included for Japan market only.) |
| 【 Specifications 】 ●Length: 425mm, Width: 188mm, Height: 130mm ●Wheelbase: 257mm ●Tire Width/Diameter (F/R): 24mm/63mm ●Bathtub Type Frame Chassis ●Longitudinally-Placed Motor Shaft-Driven Full-Time 4WD ●Front and Rear 3-Bevel Differential Gears ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●CVA Shock Unit Super Mini ●Gear Ratio＝8.35:1 ●RS540 Sport-Tuned Motor Included ●Forward/Reverse Electronic Speed Controller (ESC) Included ※Requires 8xR6/AA/UM3 batteries for transmitter. |
[vc_gallery interval=”3″ images=”911,909,910,928,912,913,914,917,919,937,922,943,924,927,925,935,940″ img_size=”full”]
[vc_separator]
RC Mercedes-Benz SLS GT3 AMG – TT02
The SLS AMG GT3 is a racecar version of the September 2009-released Mercedes-Benz SLS AMG, and it is supplied to racing teams around the world. The aluminum long-nose, short-deck body is fitted with gull-wing doors and the functional interior features a roll cage. Down-force is provided by the front spoiler, large rear wing and rear diffuser, while the transaxle layout uses a sequential 6-speed transmission to transmit power from the front-mounted 6.2-liter V8 engine to the rear wheels.
Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | on-road |
| Drive-train | 4WD |
| Drive type | gearbox |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | slick |
| Body material | Polycarbonate |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | included |
| ESC model | TEU-105BK |
| LED Light buckets | yes |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | plastic bushing |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | yes |
| Adjustable track width | yes |
| Adjustable shock angle | yes |
| Special feature 1 | Easy to build entry level kit |
| Special feature 2 | Includes window masking seal for easy painting |
| Special feature 3 | Highly detailed body with vinyl stickers |
| Special feature 4 | Symetrical suspension components |
| Special feature 5 | Beveled main chassis for improved cornering clearance |
| Special feature 6 | Brake disc shaped wheel hubs |
| Special feature 7 | Wheelbase: 257mm/251mm adjustable |
| Special feature 8 | Compatible with 380-size motors |
| Special feature 9 | Battery compartment compatible with square shaped batteries |
| Requires A | 2-channel radio gear |
| Requires B | 7.2 battery & charger |
| Requires C | polycarbonate paint |
[vc_gallery interval=”3″ images=”948,906,905,907,908,944,945″ img_size=”full”]
[vc_separator]

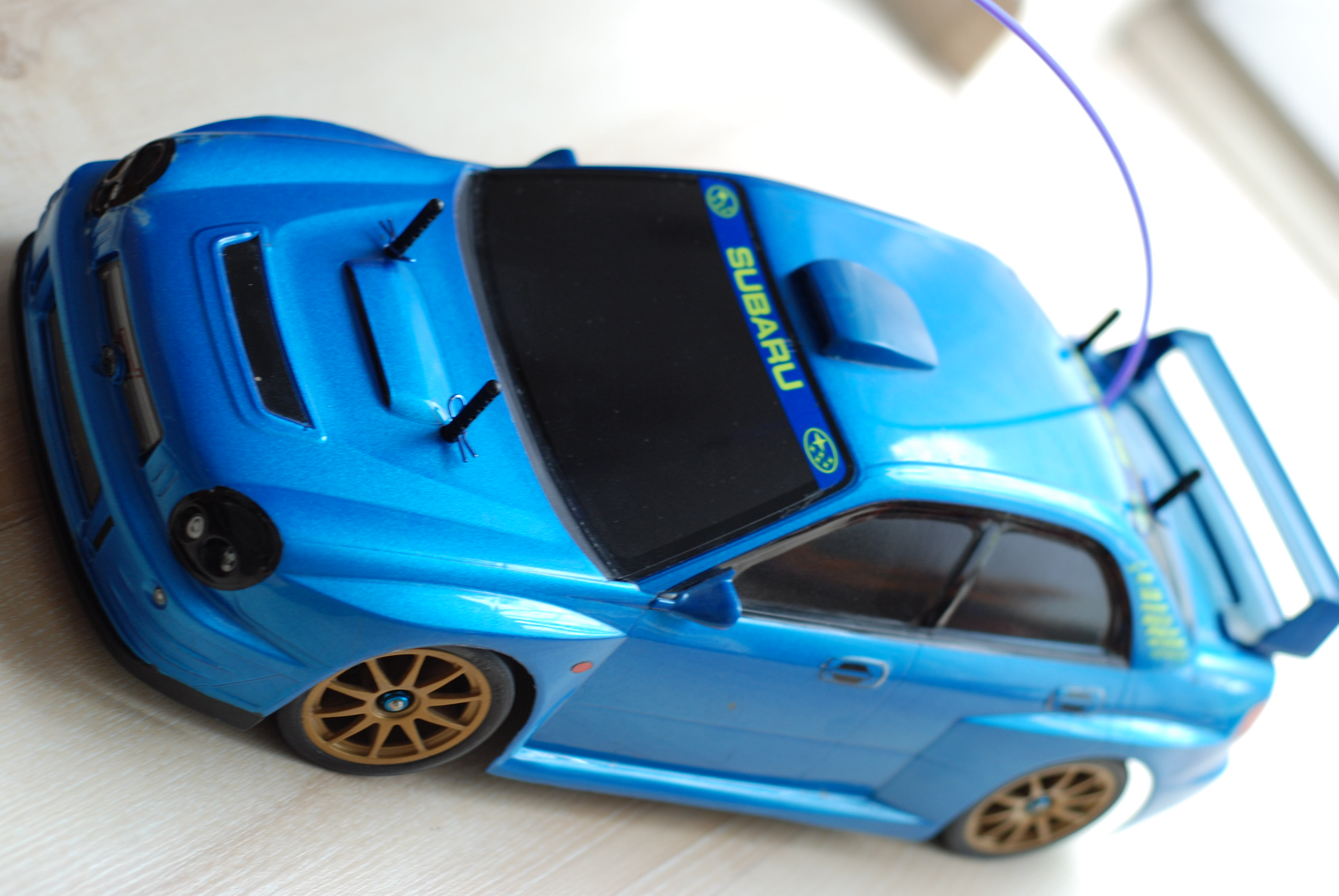

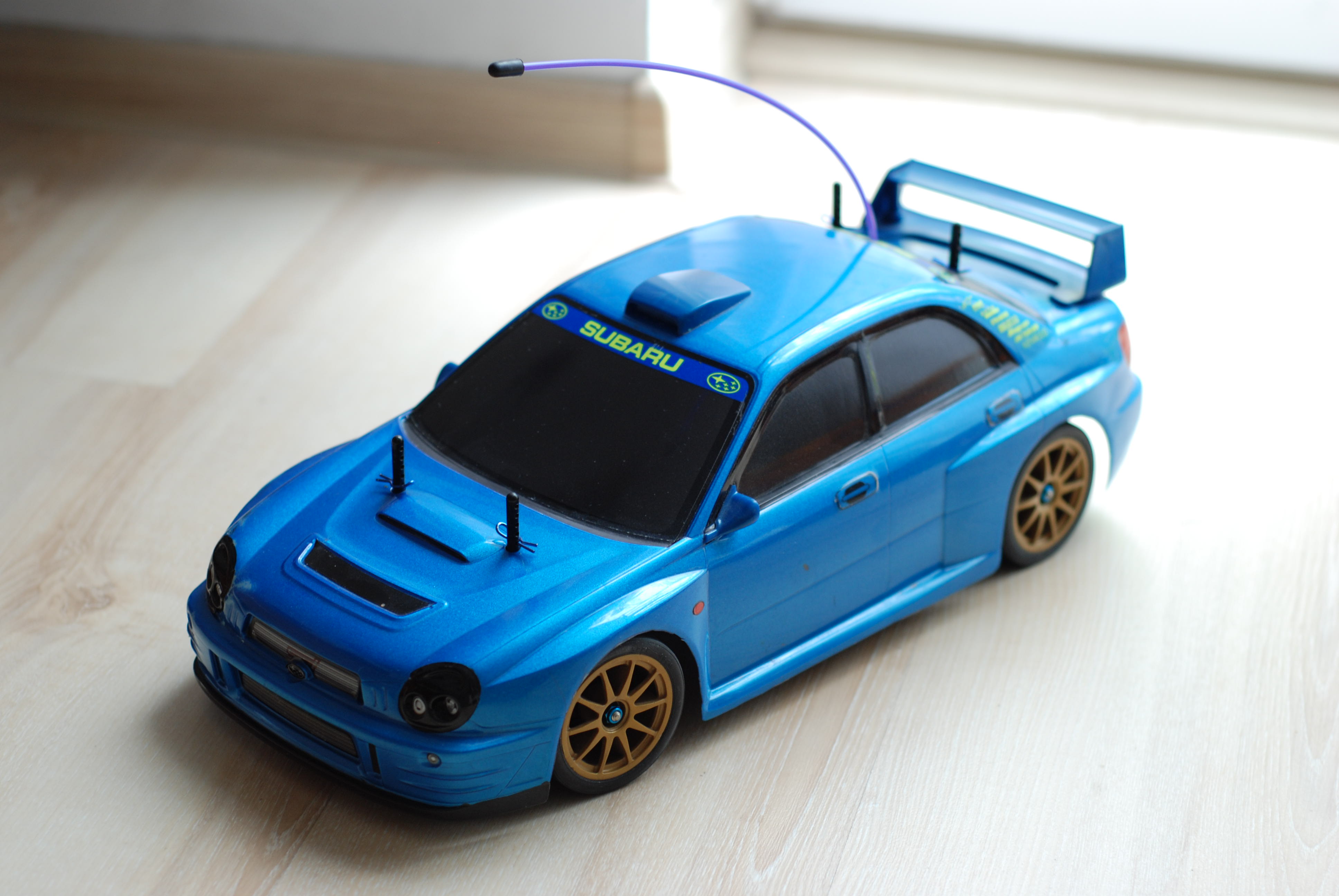

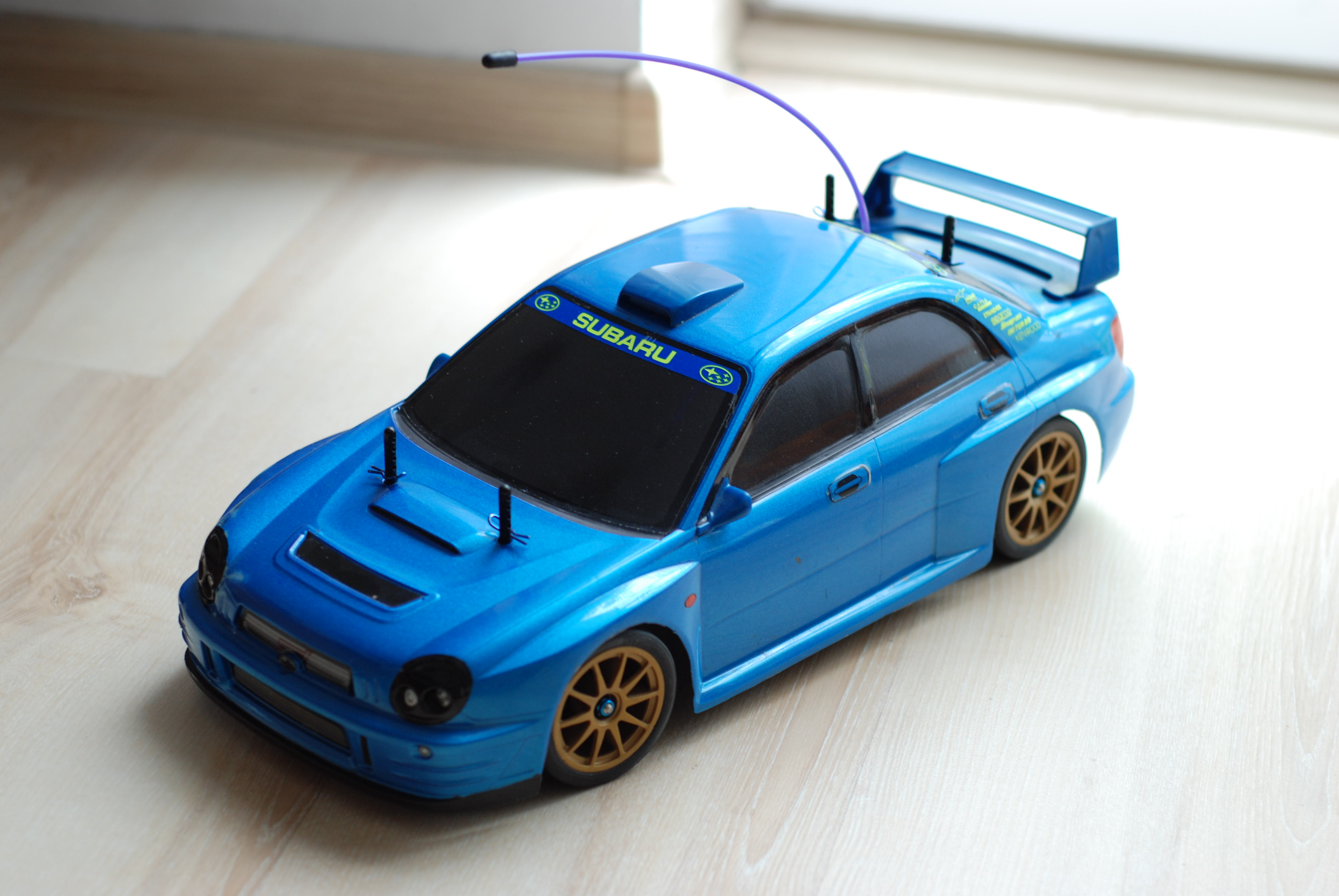

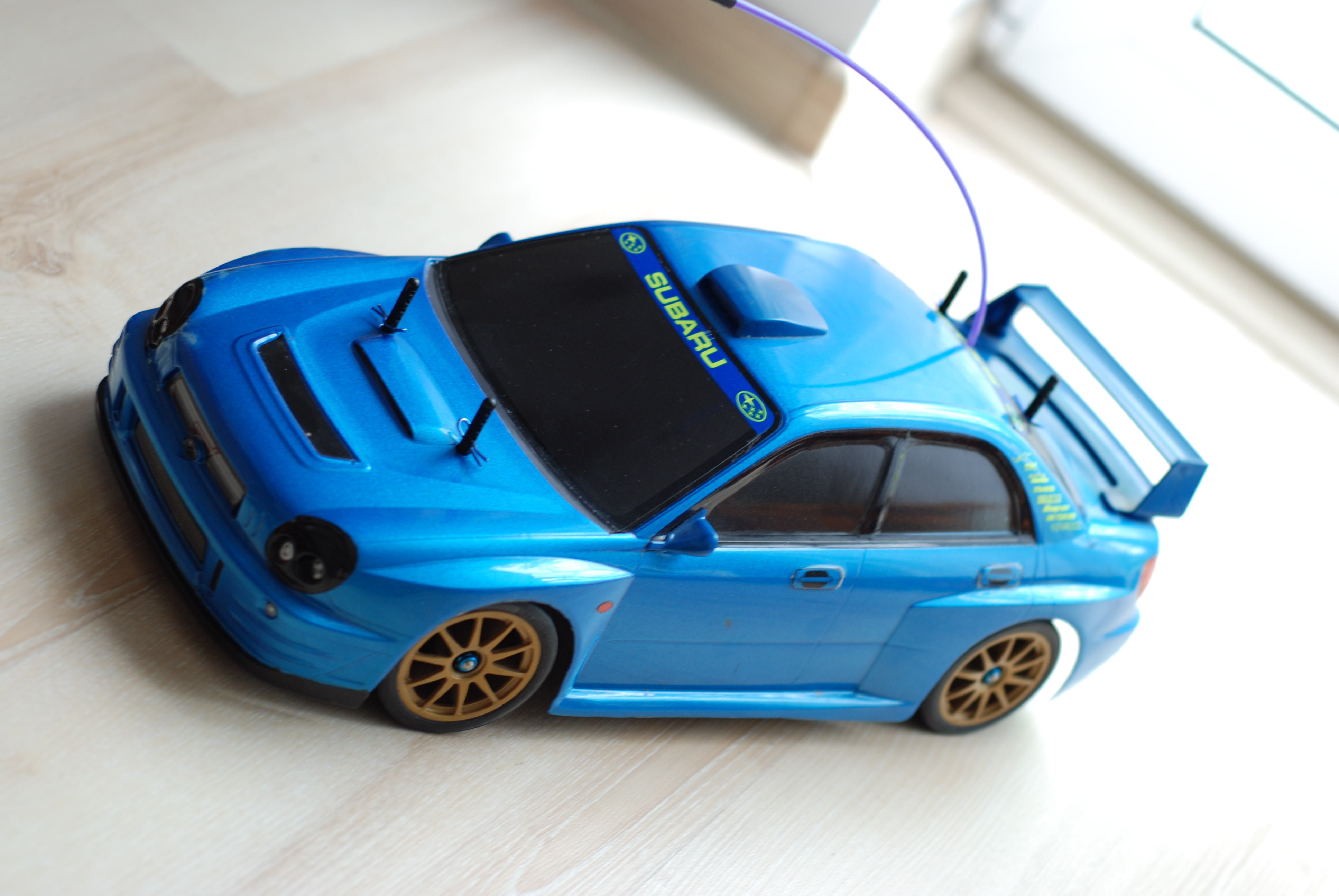

RC Subaru Impreza WRC 2001 – TL01
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | assembly kit |
| Terrain use | on-road |
| Drive-train | 4WD |
| Drive type | shaft |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | fully independent double wishbone |
| Steering mechanism | direct servo |
| Shock damper | friction damper |
| Shock damper material | plastic |
| Tire type | rubber |
| Tire tread | radial |
| Body material | Clear Polycarbonate |
| Chassis material | plastic |
| Electronic Speed Control (ESC) | not included |
| ESC model | n/a |
| LED Light buckets | no |
| LED lights | no |
| Motor | 540-brushed type |
| Bearings | metal and plastic bushings |
| Adjustable camber | fixed |
| Adjustable toe angles | front only |
| Adjustable ground clearance | yes |
| Adjustable gear ratio | yes |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | Chassis Type: TL-01 |
| Special feature 2 | Overall Length: 441mm |
| Special feature 3 | Overall Width: 185mm |
| Special feature 4 | Chassis Weight: 1104g |
| Special feature 5 | Wheelbase: 257mm |
| Special feature 6 | Tread F/R: 157mm |
| Special feature 7 | Tire Width/Diameter F/R: 27/65mm |
| Special feature 8 | Gear Ratio: 7.96:1 |
| Special feature 9 | Frame: Polycarbonate monocoque type |
| Special feature 10 | Four wheel independent double wishbone system |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear |
| Requires C | polycarbonate paint |
[vc_gallery interval=”3″ images=”904,902,903,901″ img_size=”full”]
